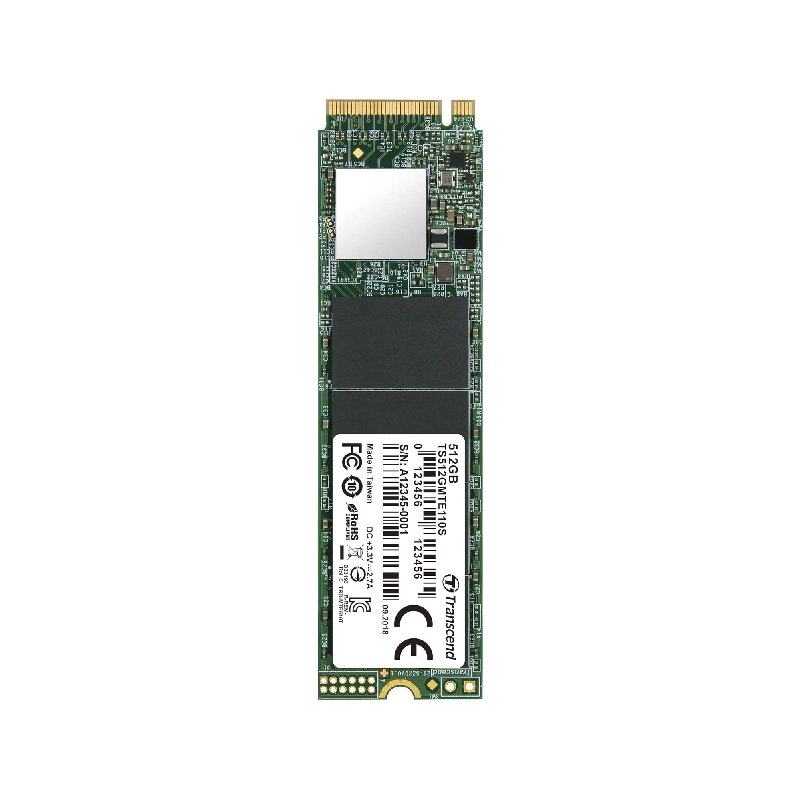

Transcend Internal SSD 512GB, M.2 2280, PCIe Gen3x4, M-Key, 3D TLC, DRAM-less, RAID Engine and LDPC, Dynamic Thermal Throttling Mechanism TS512GMTE110S

Features:

• Adopts PCIe Gen3 x4 interface and NVMe 1.3 standard
• Up to 1, 800 MB/s Read; 1, 500 MB/s write
• 3D NAND Flash memory
• Engineered with a RAID engine and LDPC (Low-Density Parity check) coding to ensure data integrity; built-in SLC caching technology for exceptional transfer speeds
• Engineered dynamic thermal throttling mechanism

Compelling performance for high-end applications

Transcend's PCIe SSD 110S/112S follows NVMe 1.3 and utilizes the PCIe™ Gen3 x4 interface, meaning four lanes are used for transmitting and receiving data simultaneously, resulting in compelling performance of up to 2,500MB/s read and 1,700MB/s write.

Note: Performance is based on CrystalDiskMark v5.0.2.

Understanding the PCIe interface

PCIe (or PCI Express®) is a much faster interface than SATA (or Serial ATA) for connecting a host computer to solid-state storage devices over one or more lanes consisting of one transmit and one receive serial interface in each lane, meaning it can better fulfill new performance requirements.

Understanding the NVMe standard

NVMe (or NVM Express®) is a host controller interface standard designed to address the needs of enterprise and client applications that utilize PCI Express-based solid-state storage. NVMe calls for better performance vectors than AHCI (Advanced Host Controller Interface), including scalable bandwidth, increased IOPS, and low latency.

3D expansion to break through limits

Unlike the existing planar NAND chips, 3D NAND flash is a type of flash memory in which the memory cells are stacked vertically in multiple layers. 3D NAND is developed to break through density limitations of the 2D planar NAND, and thus can deliver a greater level of performance and endurance.

Better endurance, higher reliability

Transcend's PCIe SSD 110S/112S is engineered with LDPC (Low-Density Parity Check) coding, a powerful ECC algorithm, to keep data secure. Manufactured with high-quality NAND flash chips, and engineered dynamic thermal throttling mechanism, the PCIe SSD 110S/112S guarantees superior endurance and stability for high-end applications.

Transcend SSD Scope software

To keep your Transcend SSD running fast and error-free, Transcend's SSD Scope software application is available for download free of charge. Monitor your SSD's health status with S.M.A.R.T. technology, enable the TRIM command for optimum write speeds, keep your SSD's firmware up-to-date, and migrate data from your original drive to a new SSD with just a few clicks.

Learn more

Guaranteed Quality

To ensure the utmost level of quality, Transcend SSDs undergo rigorous testing at all stages of production, including tests for vibration, temperature and humidity, speed, and functionality.

Specifications

Appearance

• Type: M.2 2280
• Dimensions:
  • Single-sided: 80 mm x 22 mm x 2.23 mm (3.15" x 0.87" x 0.09")
  • Double-sided: 80 mm x 22 mm x 3.58 mm (3.15" x 0.87" x 0.14")
• Weight: 8 g (0.28 oz)

Interface

• Bus Interface: NVMe PCIe Gen3 x4

Storage

• Flash Type: 3D NAND flash
• Capacity:
  • 128 GB
  • 256 GB
  • 512 GB
  • 1 TB
  • 2 TB

Operating Environment

• Operating Temperature: 0°C (32°F) ~ 70°C (158°F)
• Operating Voltage: 3.3V±5>#/li###

Performance

• Sequential Read/Write (CrystalDiskMark):
  • 2 TB: Up to 2,500/1,700 MB/s
  • 1 TB: Up to 1,700/1,400 MB/s
  • 512 GB: Up to 1,700/1,400 MB/s
  • 256 GB: Up to 1,600/1,100 MB/s
  • 128 GB: Up to 1,500/550 MB/s
• 4K Random Read/Write (IOmeter):
  • 2 TB: Up to 200,000/250,000 IOPS
  • 1 TB: Up to 200,000/250,000 IOPS
  • 512 GB: Up to 160,000/250,000 IOPS
  • 256 GB: Up to 90,000/250,000 IOPS
  • 128 GB: Up to 95,000/130,000 IOPS
• Terabytes Written (TBW):
  • 2 TB: 800 TBW
  • 1 TB: 400 TBW
  • 512 GB: 200 TBW
  • 256 GB: 100 TBW
  • 128 GB: 50 TBW
• Mean Time Between Failures (MTBF): 2,000,000 hours
• Drive Writes Per Day (DWPD): 0.2 (5 years)

Notes

• Speed may vary due to host hardware, software, usage, and storage capacity.
• The workload used to rate DWPD may differ from actual workload, which can vary due to host hardware, software, usage, and storage capacity.
• Terabytes Written (TBW) expresses the endurance under the highest capacity.
• Some motherboards only provide PCIe x2 connections for the M.2 slot, which may create a bottleneck even with the fastest drives.

System Requirement

• Operating System:
  • Microsoft Windows 7 or later
  • Linux Kernel 2.6.31 or later
• Note: Systems for use with PCIe M.2 SSD must have an M.2 connector with only an M key. B-key connectors are not compatible. Improper insertion may lead to damage.

Technology

• S.M.A.R.T.: Yes
• Advanced Garbage Collection: Yes
• RAID Engine: No
• LDPC Coding: Yes
• DRAM Cache: No
