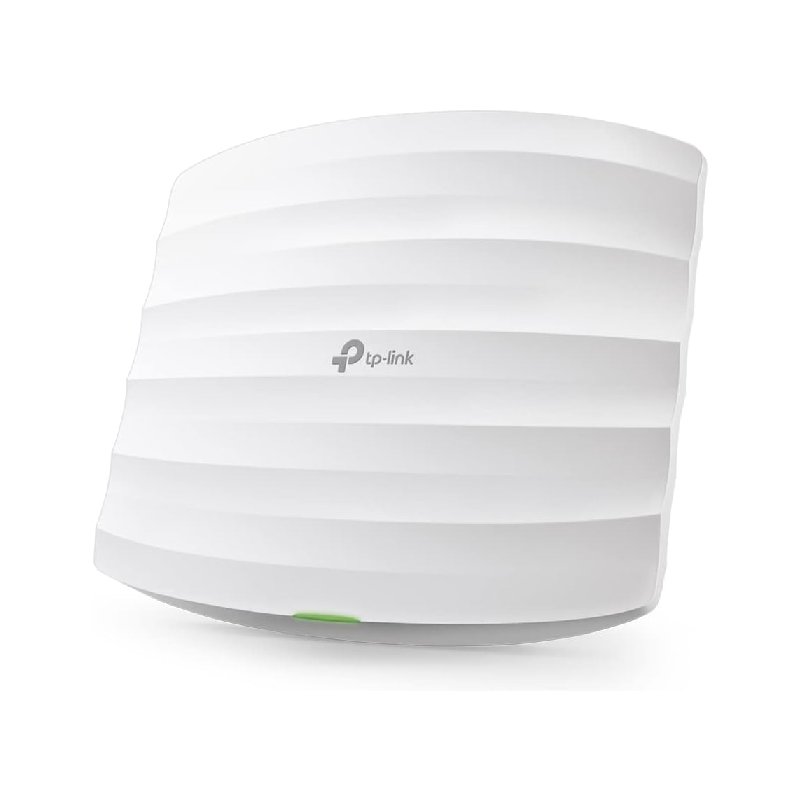

TP-Link Ceiling Mount Wireless Access Point N300, Multi-SSID, Flexible Placement, Supports Passive PoE, Enterprise Class Wi-Fi Security EAP110

With easy mounting design, PoE power supply, Cluster feature, Centralized management software, Captive portal, Auto RF management, and business hardware, TP-LINK EAP110 is specially designed for high-density, most demanding business environments, including schools, hotels, and enterprises. Frequency Range: 2.4-2.4835GHz; Interface Available: Fast Ethernet (RJ-45) Port x 1（Support Passive PoE）; System Requirement: Microsoft Windows 10/8/7/Vista/XP; Wireless Standards: IEEE 802.11n IEEE 802.11g IEEE 802.11b

Features:

• Cloud centralized management and Omada app for ultra convenience and easy management
• Supports passive PoE for convenient installation up to 100meters
• The ceiling mounting design with chassis makes it easy to deploy on a wall or ceiling
• Secure guest network along with multiple authentication options (SMS/Facebook Wi-Fi/ Voucher, etc.) and abundant wireless security technologies
• Multi-SSID divides multiple wireless networks for different users
• Enterprise-class Wi-Fi security helps to decrease network security threats
• Supports management vlan for enhanced network management

Flexible Placement

Easy mounting design & PoE

The EAP’s elegant appearance and easy mounting design with chassis make it easy to integrate seamlessly into any wall or ceiling surface to blend in with most interior decorations. EAP110 supports Passive PoE to make deployment effortless and flexible.

Cloud Centralized Management - Anytime, Anywhere

Omada Hardware Controller OC200 and Omada Software Controller make it easy to manage and monitor the whole Omada network in real time, while cloud service enables remote and secure access no matter where you find yourself.

Guest Network with Facebook and SMS Support

Captive portal helps maintain only authorized guests to use the network, presenting devices with a convenient, user-friendly authentication method to grant Wi-Fi access. The addition of SMS and Facebook authentication simplifies the captive portal even further to simplify connectivity and boost your business.

Easy Management with the Omada App

Follow the configuration instructions on the free Omada app to get set up in minutes. Omada lets you configure settings, monitor the network status, and manage clients, all from the convenience of a smartphone or tablet.

Specifications:

HARDWARE FEATURES

• Interface: Fast Ethernet (RJ-45) Port *1（Support Passive PoE）
• Button: Reset
• Power Supply: 24V Passive PoE (+4,5pins; -7,8pins. PoE Adapter Included)
• Power Consumption: 2.8W
• Dimensions ( W x D x H ): 7.5×6.7×1.2 in (189.5×170.5×29.7mm)
• Dimensions: 7.5×6.8×1.2 in. (189.4×172.3×29.5mm)
• Antenna Type: Internal 2* 4dBi Omni
• Mounting: Ceiling /Wall Mounting (Kits included)

WIRELESS FEATURES

• Coverage: 60㎡(650ft²)§
• Wireless Client Capacity: 100+**
• Concurrent Clients: 100+**
• Wireless Standards: IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
• Frequency: 2.4-2.4835GHz
• Signal Rate: 11n: Up to 300Mbps(dynamic) 11g: Up to 54Mbps(dynamic) 11b: Up to 11Mbps(dynamic)
• Reception Sensitivity: 300M: -71dBm@10% PER 150M: -75dBm@10% PER 54M: -78dBm@10% PER 11M: -93dBm@8% PER 6M: -92dBm@10% PER 1M: -96dBm@8% PER
• Wireless Functions: Multiple SSIDs （Up to 8 SSIDs） Enable/Disable Wireless Radio Automatic Channel Assignment Transmit Power Control （Adjust Transmit Power on dBm） QoS(WMM) Rate Limit Reboot Schedule Wireless Schedule Wireless Statistics based on SSID/AP/Client
• Wireless Security: Captive Portal Authentication Access Control Wireless MAC Address Filtering Wireless Isolation Between Clients SSID to VLAN Mapping Rogue AP Detection 802.1X Support 64/128/152-bit WEP / WPA / WPA2-Enterprise, WPA-PSK / WPA2-PSK
• Transmission Power: CE: ≤19dBm(EIRP) FCC: ≤21dBm

MANAGEMENT

• Omada App: Yes
• Centralized Management:
•      • Omada Hardware Controller (OC300)
•      • Omada Hardware Controller (OC200)
•      • Omada Software Controller
• Omada Controller Software: Yes
• Cloud Access: Yes (Through OC300, OC200, or Omada Software Controller)
• Email Alerts: Yes
• LED ON/OFF Control: Yes
• Management MAC Access Control: Yes
• SNMP: v1,v2c
• System Logging: Local/Remote Syslog Local/Remote Syslog
• Telnet: Yes
• SSH: Yes
• Web-based Management: HTTP/HTTPS
• L3 Management: Yes
• Multi-site Management: Yes
• Management VLAN: Yes

OTHERS

• Certification: CE, FCC, RoHS
• Package Contents: 300Mbps Wireless N Ceiling Mount Access Point EAP110 Passive PoE Adapter, Power Cord, Mounting Kits, Installation Guide
• System Requirements: Microsoft Windows 10/8/7/Vista/XP
• Environment: Operating Temperature: 0℃~40℃ (32℉~104℉) Storage Temperature: -40℃~70℃ (-40℉~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing
