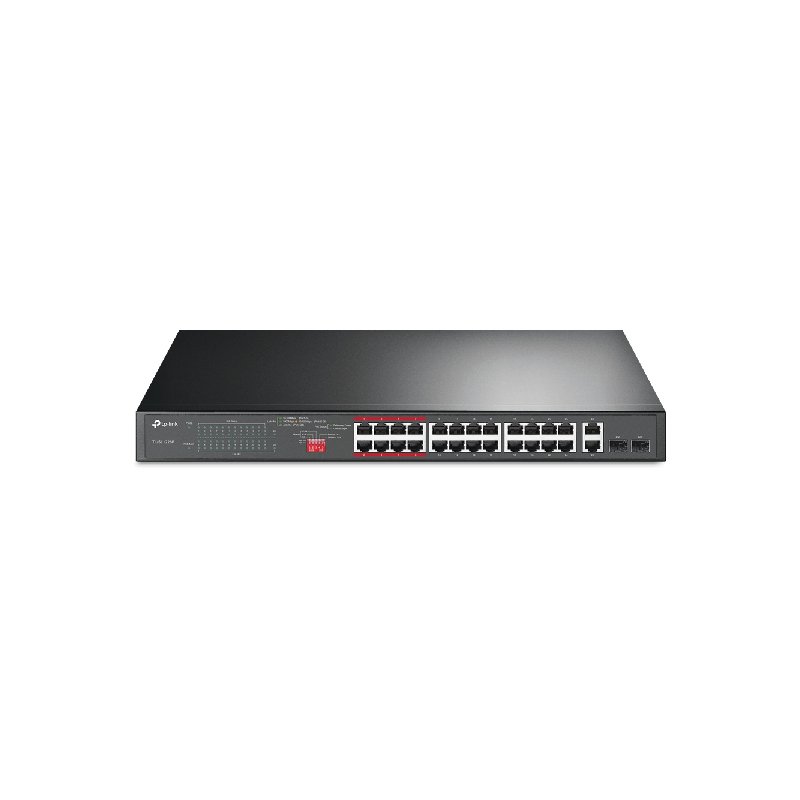

TP-Link 24-Port 10/100Mbps Desktop/Rackmount Switch, 250W PoE Budget, Transmission Distance up to 250m, One-Click Priority Mode, One-Click Traffic Separation,Ultra HD Video, Plug and Play TL-SL1226P

Features:

• 24× PoE+ 10/100 Mbps RJ45 ports, 2× Gigabit RJ45 ports, and 2× combo Gigabit SFP slots
• High PoE power budget with up to 30 W for each PoE port and 250 W for all PoE ports*
• Up to 250 m data and power PoE transmission range under Extend Mode**, ideal for surveillance system
• Priority Mode ensures high priority of ports 1–8 to guarantee the quality of sensitive applications like video monitor
• Isolation Mode allows one-click client traffic separation for higher security and performance
• Plug and play, with no configuration and installation needed.

Professional High Power 24-Port PoE+ Switch

Plug and Play, with PoE Transmission for Surveillance up to 250 m

Dedicated 24-Port PoE+ Switch for a wide range of Applications with 250 W PoE Budget

Compliance with the 802.3af/at PoE+ standard supports up to 30 W on each PoE port. The total 250 W PoE power budget* for the 24× PoE ports makes it have a wide range of applications, such as surveillance, offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, and etc.

Dedicated Design for IP Surveillance—Up to 250 m Transmission

With extend mode, the PoE transmission distance reaches up to 250 m*—perfect for IP Camera deployment in large areas.

*The speed of the ports in extend mode will downgrade to 10 Mbps. Actual transmission distance may vary due to cable quality.

Dedicated Design for IP Surveillance—Higher Performance and Security

Priority Mode and Isolation Mode make surveillance smoother and safer.

• Priority Video Quality Guaranteed

  Quality of sensitive applications like video monitoring in critical business areas is guaranteed by offering higher priority options for ports 1–8 when one-touch Priority Mode is on.

• Isolation Mode Button

  One-Click Traffic Separation for Ports 1-24

  With one click, Isolation Mode easily divides traffic for ports 1–24 to avoid snooping and tampering. This enables the switch to isolate broadcast storms, improving LAN security and data transmission.

Smooth HD Video Monitoring

2× gigabit RJ45 ports and 2× combo gigabit SFP ports ensure smooth streaming even when 24× HD IP cameras work simultaneously.

Wide Operating Temperature with Good Heat Dissipation

Durable metal casing and professional heat dissipation design ensure the wide operating temperature (0–50℃) with reliability.

Specifications:

HARDWARE FEATURES

Interface

• 24× PoE+ 10/100 Mbps RJ45 Ports
• 2× 10/100/1000 Mbps RJ45 Ports
• 2× Combo Gigabit SFP Slots

Network Media

• 10BASE-T: UTP category 3, 4, 5 cables (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m)
• 100BASE-TX: UTP category 5, 5e cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m)
• 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m)
• 1000BASE-X MMF, SMF
• Fan Quantity: 2 Fans
• Physical Security Lock: Yes
• Power Supply: 100-240 VAC, 50/60 Hz
• Packet Forwarding Rate: 6.5472 Mpps
• PoE+ Ports(RJ45):Standard: 802.3at/802.3af compliant, PoE Ports: Port 1 – Port 24, PoE Power Budget: 250 W
• Mac Address Table: 8 K
• Jumbo Frame:10 KB
• Switching Capacity: 8.8 Gbps
• Dimensions ( W x D x H ): 17.3 × 7.1 × 1.7 in (440 × 180 × 44 mm)
• Max Power Consumption: 18.32 W (220/50 Hz. no PD connected) 294 W (220/50 Hz. with 250 W PD connected)
• Max Heat Dissipation: 62.47 BTU/h (no PD connected) 1002.54 BTU/h (with 250 W PD connected)

SOFTWARE FEATURES

Advanced Features

• Compatible With IEEE 802.3at/af Compliant PDs
• Extend Mode (Up to 250m PoE power supply and data transmission)
• Priority Mode
• Isolation Mode
• PD Detection
• Intelligent Power Supply
• Mac Address Auto-Learning and Auto-Aging
• IEEE802.3x Flow Control

Transmission Method: Store-And-Forward

OTHERS
Certification: CE, FCC, RoHS
Package Contents

• TL-SL1226P
• Power Cable
• Installation Guide
• Two mounting brackets and the fittings

Environment

• Operating Temperature: 0–50 °C (32–122 °F)
• Storage Temperature: -40–70 °C (-40–158 °F)
• Operating Humidity: 10–90% non-condensing
• Storage Humidity: 5–90% non-condensing
