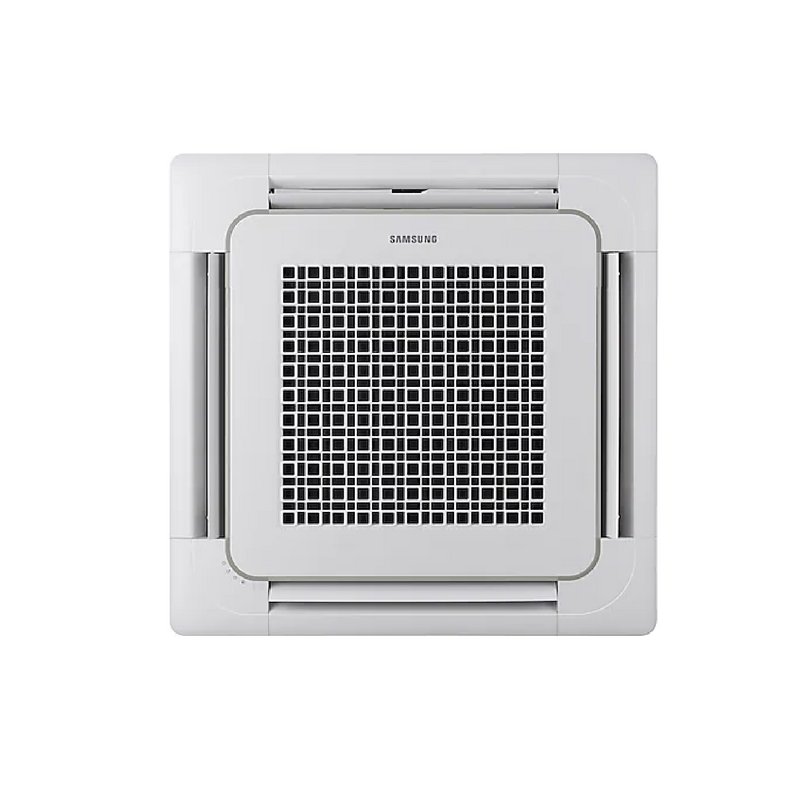

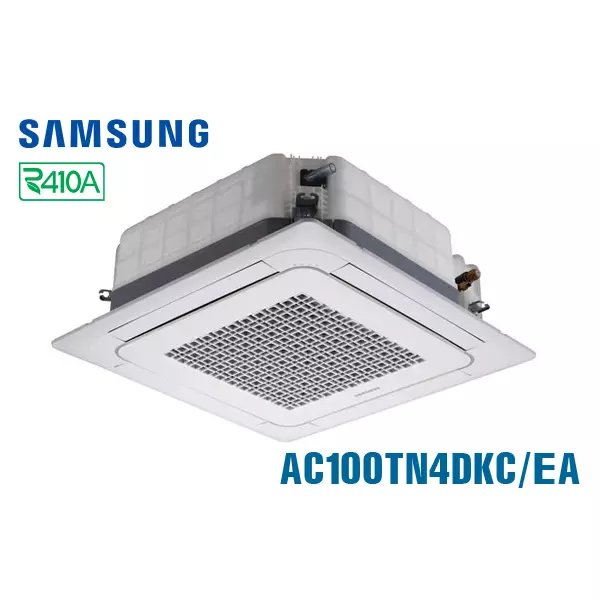

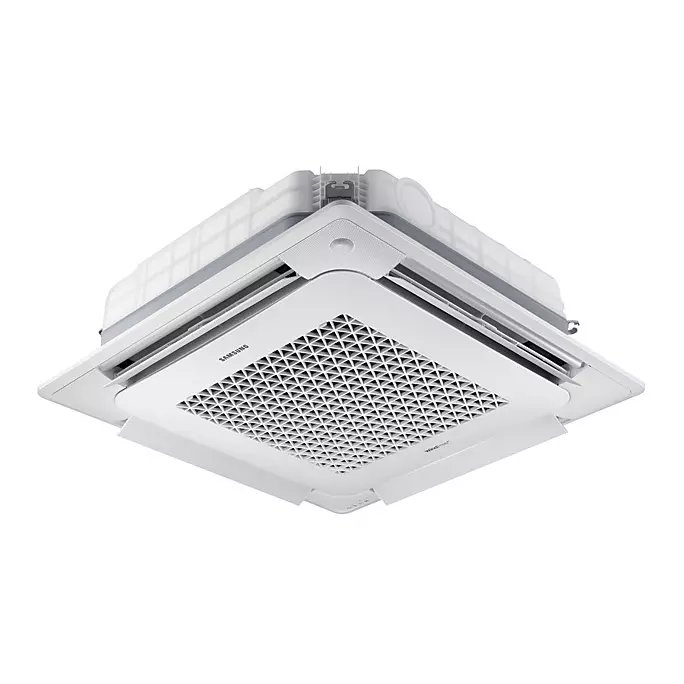

Samsung Ceiling Cassette 36,000 BTU Wind-Free, Energy Saving, Big Blade, Motion Detect Sensor AC100TN4DKC/EA-36BTU

Exquisite, compact design suitable for modern ceilings and interior architectures. Cooling capacity 36000BTU (4.0HP) suitable for area 50 - 54 m. Clean, environmentally friendly refrigerant Gas R410A. Stylish and  clean design. Uses Digital Inverter technology to save energy by automatically adjusting the compressor and continuously adapting to the surrounding environment. This superior performance provides comfortable cooling and reduces energy consumption by up to 60%. Intelligent 4-way louver design, disperses strong airflow evenly throughout the room. Users can independently control the four flaps and choose the settings according to their needs for comfort and convenience.

Feature

Stay cool without direct wind

WindFree™

WindFree™Cooling effectively maintains a comfortable level of coolness without the unpleasant feeling of cold wind.Cool air is gently dispersed through 15,672 micro air holes, so you won’t feel too hot or cold.

Energy saving with WindFree™ Cooling

Energy Saving

WindFree™ Cooling allows efficient energy saving up to 55%.

Wider cooling range

Big Blade

Big and optimized blades enable even wider cooling range.

Optimized operation by MDS

Motion Detect Sensor

Motion Detect Sensor enables customized air flow and energy effcient operation.

Specification

• Type: 10kW-1Φ-4Way
• Indoor Unit: AC100TN4DKC/EA
• Outdoor Unit: AC100TXADKC/EA
• Mode: COOLING ONLY
• Cooling [kW]:3.0 / 10.0 / 12.0 kW

Current Input (Nominal)

• Cooling 1: )3.0/14.8/20.4 A

Power

• MCA [A]: 26.0 A
• MFA [A]: 30.0 A
• EER (Nominal Cooling): 3.20

Piping Connections

• Liquid Pipe (Φ, mm): 9.52 mm
• Liquid Pipe (Φ, inch); 3/8"
• Gas Pipe (Φ, mm): 15.88 mm
• Gas Pipe (Φ, inch): 5/8"
• Installation Max. Length [m]: 50 m
• Installation Max. Height [m]: 30 m

Field Wiring

• Transmission Cable:0.75↑

Refrigerant

• Type: R410A
• Control Method: EEV
• Factory Charging (kg): 3.00 kg

Power Supply (Indoor Unit) [Φ, #, V, Hz]

• 1,2,220-240,50

Fan

• Type: Turbo
• Motor (Output) [W]: 97 W
• Number of Unit (EA): 1 EA
• Air Flow Rate (High / Mid / Low) [CMM]: 30.3/24.3/19.4 CMM

Drain

• Drain Pipe (Φ,mm): VP25 (OD 32,ID 25)

Sound

• Sound Pressure (High / Mid / Low) [dB(A)]: 43/38/33 dBA

External Dimension (Indoor Unit)

• Net Weight: 20.0 kg
• Shipping Weight (kg): 23.5 kg
• Net Dimensions (WxHxD) (mm): 840 x 288 x 840 mm
• Shipping Dimensions (WxHxD) (mm): 898 x 357 x 898 m

Panel Size

• Panel model: PC4NUFDAN
• Panel Net Weight (kg): 6.3 kg
• Shipping Weight (kg): 8.7 kg
• Net Dimensions (WxHxD) (mm): 950 x 48 x 950 mm
• Shipping Dimensions (WxHxD) (mm): 1010 x 117 x 1000 mm

Additional Accessories

• Drain Pump: Built in
• Drain Pump Max. Lifting Height/Displacement: 750 /24

Power Supply (Outdoor Unit) [Φ, #, V, Hz]

• 1,2,220-240,50

Compressor

• Type: Twin BLDC Rotary
• Model: UG8T300FUBJU
• Output(kW): 2.82 kW
• Oil (Type): POE
• Oil (Initial Charge) [cc]: 1200 cc

Fan (Outdoor Unit)

• Air Flow Rate (Cooling) [CMM]: 76 CMM

Sound (Outdoor Unit)

• Sound Pressure (Cooling / Heating) [dB(A)]: 53 dBA

External Dimension (Outdoor Unit)

• Net Weight: 71.0 kg
• Shipping Weight (kg): 76.0 kg
• Net Dimensions (WxHxD) (mm): 940 x 998 x 330 mm
• Shipping Dimensions (WxHxD) (mm): 995 x 1096 x 426 mm
