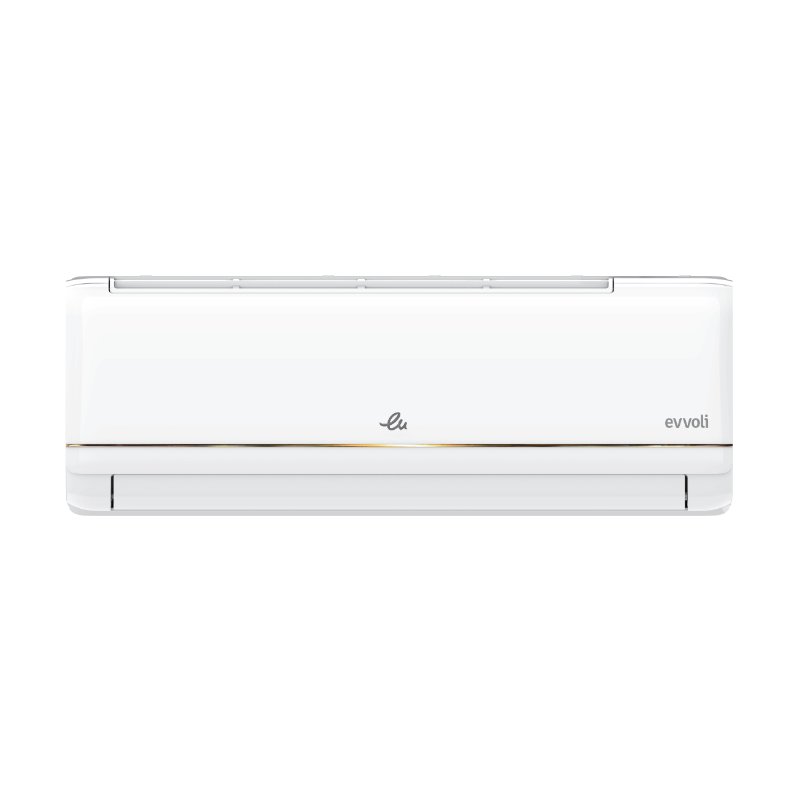

Evvoli AC Inverter Cooling and Heating 24000BTU 3M Cooper Pipe MD-EVCS

Specifications

BASIC INFORMATION

• Power Supply V,Ph,Hz: 220-240V,1Ph,50Hz
• Cooling Capacity Btu/h: 24000
• Input W: 2503
• Rated Current A: 10.9
• EER W/W: 2.81
• Heating Capacity Btu/h: 26000
• Input W: 2374
• Rated Current A: 10.3
• COP W/W: 3.21
• Max. Input Consumption W: 4000
• Max. Current A: 20.0
• Starting Current A: 55

Compressor

• Model: PA280G2CS-4MTL
• Type: Rotary
• Brand: GMCC
• Capacity Btu/h: 27756
• Input W: 1920
• Rated Current (RLA) A: 8.90
• Locked rotor Amp (RLA) A: 55
• Thermal Protector  —
• Thermal Protector Position: Internal
• Capacitor uF: 60
• Refrigerant oil/oil Charge ml: ESTEL OIL VG74/750

SPECIFICATIONS

• Refrigerant Type g: R410A/1800
• Design pressure MPa: 4.2/1.5
• Refrigerant Piping
• Liquid Side/Gas Side mm(inch): Φ9.52/Φ15.9(3/8″/5/8″)
• Max. Refrigerant Pipe Length m: 25
• Max. Difference In Level m: 10
• Connection Wiring: 4×1.0
• Plug Type: 3×2.5
• Thermostat Type: Remote Control
• Operation Temperature℃: 17-30

Room Temperature

• Indoor(Cooling/ Heating): ℃ 17～32/0～30
• Outdoor(Cooling/ Heating): ℃ 18～43/-7～24
• Application Area (Cooling Standard) m2: 32-47
• Container Loading 20′ feet Units: 66
• Container Loading 40′ feet Units: 138
• Container Loading 40′ feet High Units: 152

INDOOR UNIT

Indoor Fan Motor

• Model: YKFG-45-4-22
• Input W: 77
• Capacitor uF: 3.0
• Speed(Hi/Mi/Lo) r/min: 1120/1020/950

Indoor Coil

• Number Of Rows: 2
• Tube pitch(a)x row pitch(b) mm: 21×13.37
• Fin Spacing mm: 1.3
• Fin type (code): Hydrophilic Aluminium
• Tube outside dia.and type mm: Φ7.innergroove tube
• Coil length x height x width mm: 820x336x26.74
• Number Of Circuits: 4
• Indoor air flow (Hi/Mi/Lo) m3/h: 1060/947/870
• Indoor noise level (Hi/Mi/Lo) dB(A): 46.5/43/39.5

Indoor Unit

• Dimension(W*D*H) mm: 1080x226x335
• Packing (W*D*H) mm: 1155x415x315
• Net Weight Kg: 12.7
• Gross Weight Kg: 16.1

OUTDOOR UNIT

Outdoor Fan Motor

• Model: YKT-75-6-200L
• Input W: 144
• Capacitor uF: 3.0
• Speed r/min: 860

Outdoor Coil

• Number Of Rows: 2
• Tube pitch(a)x row pitch(b) mm: 21×13.37
• Fin Spacing mm: 1.4
• Fin type (code): Hydrophilic Aluminium
• Tube outside dia.and type mm: Φ7,innergroove tube
• Coil length x height x width mm: 760x651x26.74
• Number Of Circuits: 6
• Outdoor noise level dB(A): 59

Outdoor Unit

• Dimension(W*D*H) mm: 845x363x702
• Packing (W*D*H) mm: 965x395x765
• Net Weight Kg: 49
• Gross Weight Kg: 52.0
