Evvoli AC Inverter Cooling and Heating 18000BTU 3M Cooper Pipe MD-EVCS

Specifications

BASIC INFORMATION

• Power Supply V,Ph,Hz: 220-240V,1Ph,50Hz
• Cooling Capacity Btu/h: 18000
• Input W: 1643
• Rated Current A: 7.1
• EER W/W: 3.21
• Heating Capacity Btu/h: 18500
• Input W: 1502
• Rated Current A: 6.5
• COP W/W: 3.61
• Max. Input Consumption W: 2400
• Max. Current A: 12.0
• Starting Current A: 38

Compressor

• Model: ASM140V1VFT
• Type: Rotary
• Brand: GMCC
• Capacity Btu/h: 21325
• Input W: 1530
• Rated Current (RLA) A: 6.90
• Locked rotor Amp (RLA) A: 38
• Thermal Protector  —
• Thermal Protector Position: Internal
• Capacitor uF: 50
• Refrigerant oil/oil Charge ml: ESTEL OIL VG74/620

SPECIFICATIONS

• Refrigerant Type g: R410A/1200
• Design pressure MPa: 4.2/1.5
• Refrigerant Piping
• Liquid Side/Gas Side mm(inch): Φ6.35/Φ12.7(1/4″/1/2″)
• Max. Refrigerant Pipe Length m: 25
• Max. Difference In Level m: 10
• Connection Wiring: 3×1.5+0.75×2 (Optional)
• Plug Type: 3×1.5
• Thermostat Type: Remote Control
• Operation Temperature℃: 17-30

Room Temperature

• Indoor(Cooling/ Heating): ℃ 17～32/0～30
• Outdoor(Cooling/ Heating): ℃ 18～43/-7～24
• Application Area (Cooling Standard) m2: 24-35
• Container Loading 20′ feet Units: 88
• Container Loading 40′ feet Units: 180
• Container Loading 40′ feet High Units: 208

INDOOR UNIT

Indoor Fan Motor

• Model: YKFG-28-4-3
• Input W: 58
• Capacitor uF: 1.5
• Speed(Hi/Mi/Lo) r/min: 1140/950/800

Indoor Coil

• Number Of Rows: 2
• Tube pitch(a)x row pitch(b) mm: 21×13.37
• Fin Spacing mm: 1.2
• Fin type (code): Hydrophilic Aluminium
• Tube outside dia.and type mm: Φ7.innergroove tube
• Coil length x height x width mm: 750x336x26.74
• Number Of Circuits: 4
• Indoor air flow (Hi/Mi/Lo) m3/h: 787/631/509
• Indoor noise level (Hi/Mi/Lo) dB(A): 42.5/36/30

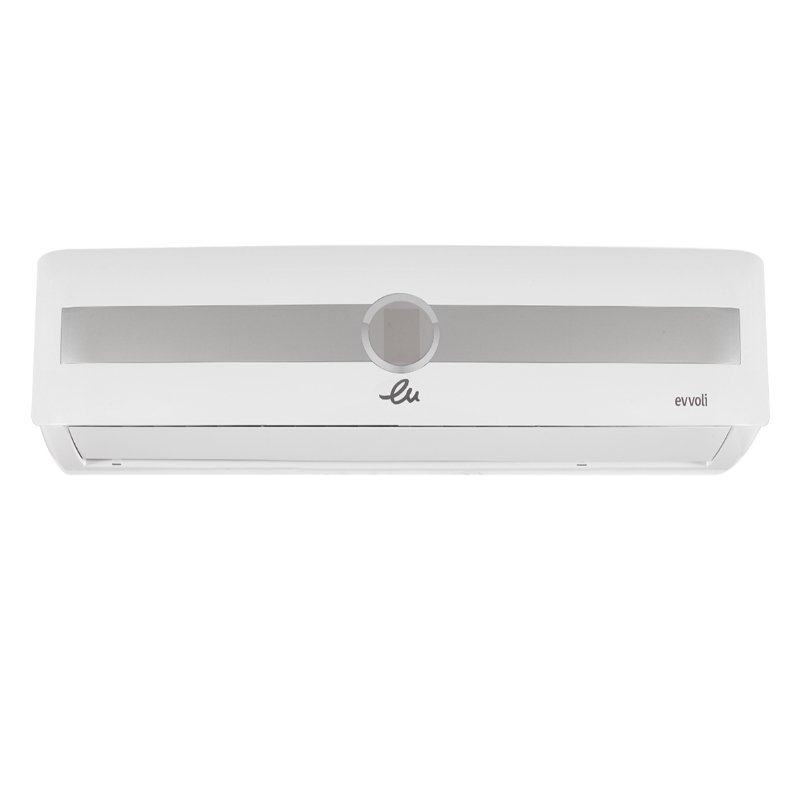

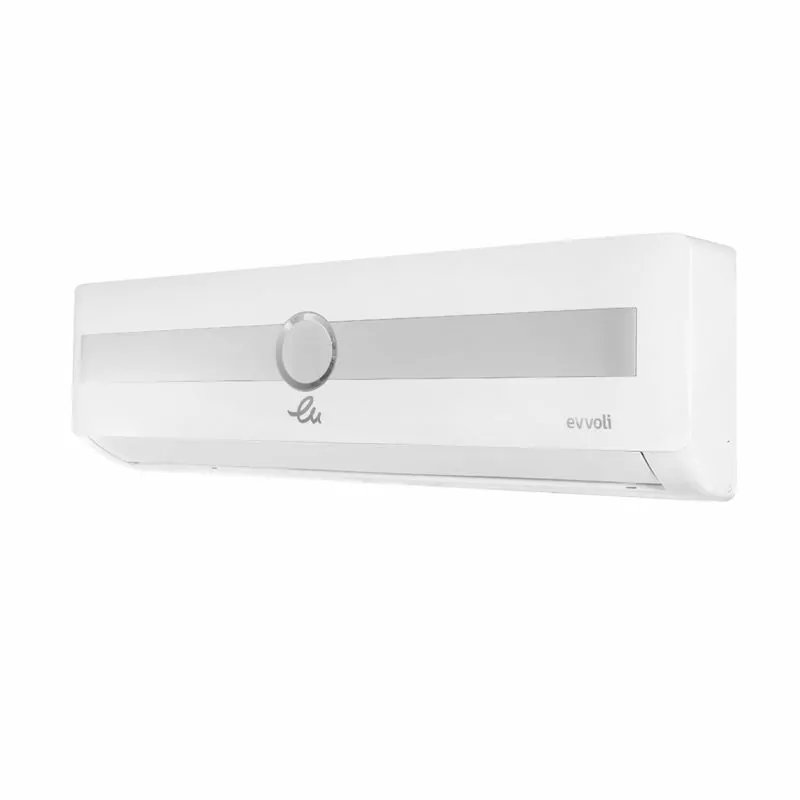

Indoor Unit

• Dimension(W*D*H) mm: 965x215x319
• Packing (W*D*H) mm: 1045X305X405
• Net Weight Kg: 11.6
• Gross Weight Kg: 14.8

OUTDOOR UNIT

Outdoor Fan Motor

• Model: YKT-48-6-206
• Input W: 91
• Capacitor uF: 2.5
• Speed r/min: 880

Outdoor Coil

• Number Of Rows: 2
• Tube pitch(a)x row pitch(b) mm: 21×13.37
• Fin Spacing mm: 1.4
• Fin type (code): Hydrophilic Aluminium
• Tube outside dia.and type mm: Φ7,innergroove tube
• Coil length x height x width mm: 755x504x26.74
• Number Of Circuits: 6
• Outdoor noise level dB(A): 59

Outdoor Unit

• Dimension(W*D*H) mm: 770x300x555
• Packing (W*D*H) mm: 900x345x585
• Net Weight Kg: 36.5
• Gross Weight Kg: 39
