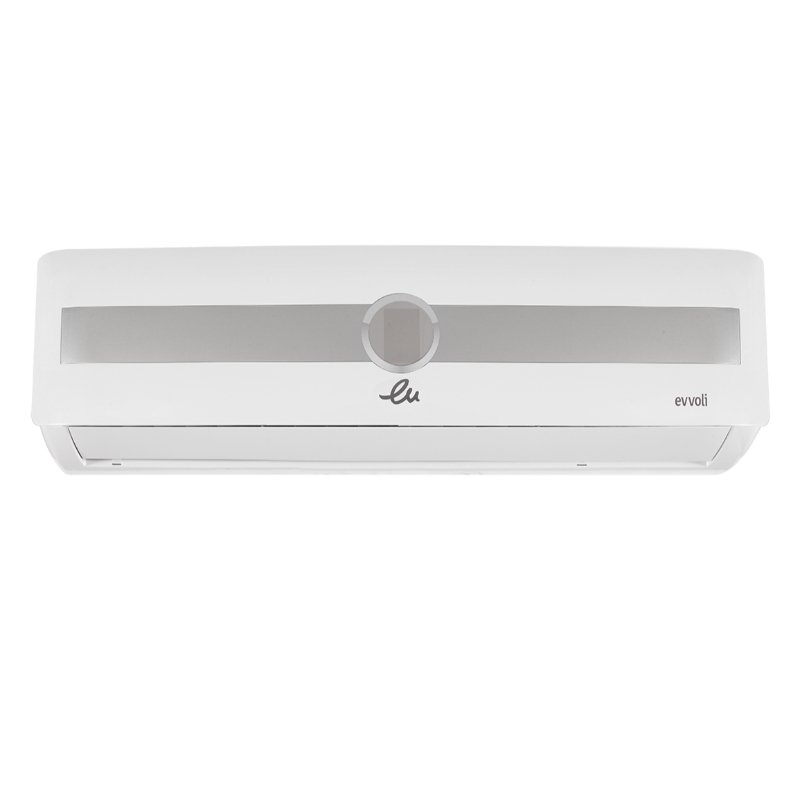

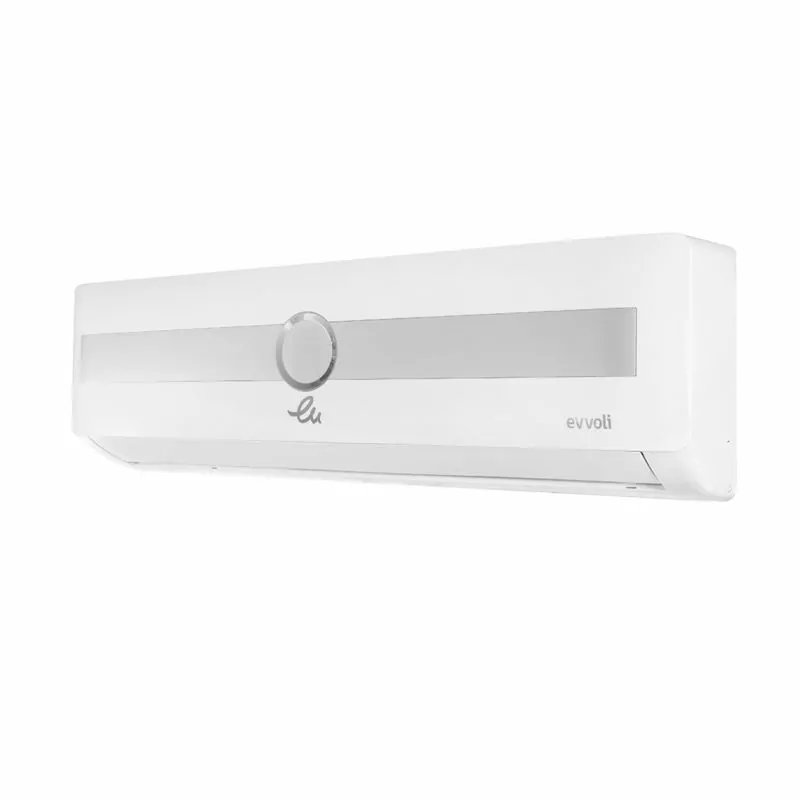

Evvoli AC Inverter Cooling and Heating 12000BTU 3M Cooper Pipe MD-EVCS

Specifications

BASIC INFORMATION

• Power Supply V,Ph,Hz: 220-240V,1Ph,50Hz
• Cooling Capacity Btu/h: 12000
• Input W: 1096
• Rated Current A: 4.8
• EER W/W: 3.21
• Heating Capacity Btu/h: 13000
• Input W: 1055
• Rated Current A: 4.6
• COP W/W: 3.61
• Max. Input Consumption W: 1800
• Max. Current A: 9.0
• Starting Current A: 25

Compressor

• Model: ASM140V1VFT
• Type: Rotary
• Brand: GMCC
• Capacity Btu/h: 13784
• Input W: 955
• Rated Current (RLA) A: 4.40
• Locked rotor Amp (RLA) A: 25
• Thermal Protector  —
• Thermal Protector Position: External
• Capacitor uF: 35
• Refrigerant oil/oil Charge ml: SUNISO 4GSD/350

SPECIFICATIONS

• Refrigerant Type g: R410A/950
• Design pressure MPa: 4.2/1.5

Refrigerant Piping

• Liquid Side/Gas Side mm(inch): Φ6.35/Φ12.7(1/4″/1/2″)
• Max. Refrigerant Pipe Length m: 20
• Max. Difference In Level m: 8
• Connection Wiring: 3×1.5+0.75×2 (Optional)
• Plug Type: 3×1.5 / VDE
• Thermostat Type: Remote Control
• Operation Temperature℃: 17-30

Room Temperature

• Indoor(Cooling/ Heating): ℃ 17～32/0～30
• Outdoor(Cooling/ Heating): ℃ 18～43/-7～24
• Application Area (Cooling Standard) m2: 16-23
• Container Loading 20′ feet Units: 105
• Container Loading 40′ feet Units: 220
• Container Loading 40′ feet High Units: 242

INDOOR UNIT

Indoor Fan Motor

• Model: YKFG-13-4-38L
• Input W: 40
• Capacitor uF: 1.2
• Speed(Hi/Mi/Lo) r/min: 1100/1000/800

Indoor Coil

• Number Of Rows: 2
• Tube pitch(a)x row pitch(b) mm: 21×13.37
• Fin Spacing mm: 1.3
• Fin type (code): Hydrophilic Aluminium
• Tube outside dia.and type mm: Φ7.innergroove tube
• Coil length x height x width mm: 605x294x26.74
• Number Of Circuits: 2
• Indoor air flow (Hi/Mi/Lo) m3/h: 523/464/369
• Indoor noise level (Hi/Mi/Lo) dB(A): 35.5/31/26.5

Indoor Unit

• Dimension(W*D*H) mm: 802x189x297
• Packing (W*D*H) mm: 875x285x375
• Net Weight Kg: 8.8
• Gross Weight Kg: 11.0

OUTDOOR UNIT

Outdoor Fan Motor

• Model: YKT-32-6-203L
• Input W: 72.5
• Capacitor uF: 2.5
• Speed r/min: 850

Outdoor Coil

• Number Of Rows: 1
• Tube pitch(a)x row pitch(b) mm: 25.4×22
• Fin Spacing mm: 1.5
• Fin type (code): Hydrophilic Aluminium
• Tube outside dia.and type mm: Φ9,innergroove tube
• Coil length x height x width mm: 745x508x22
• Number Of Circuits: 2
• Outdoor noise level dB(A): 54

Outdoor Unit

• Dimension(W*D*H) mm: 770x300x555
• Packing (W*D*H) mm: 900x345x585
• Net Weight Kg: 30.1
• Gross Weight Kg: 32.0
