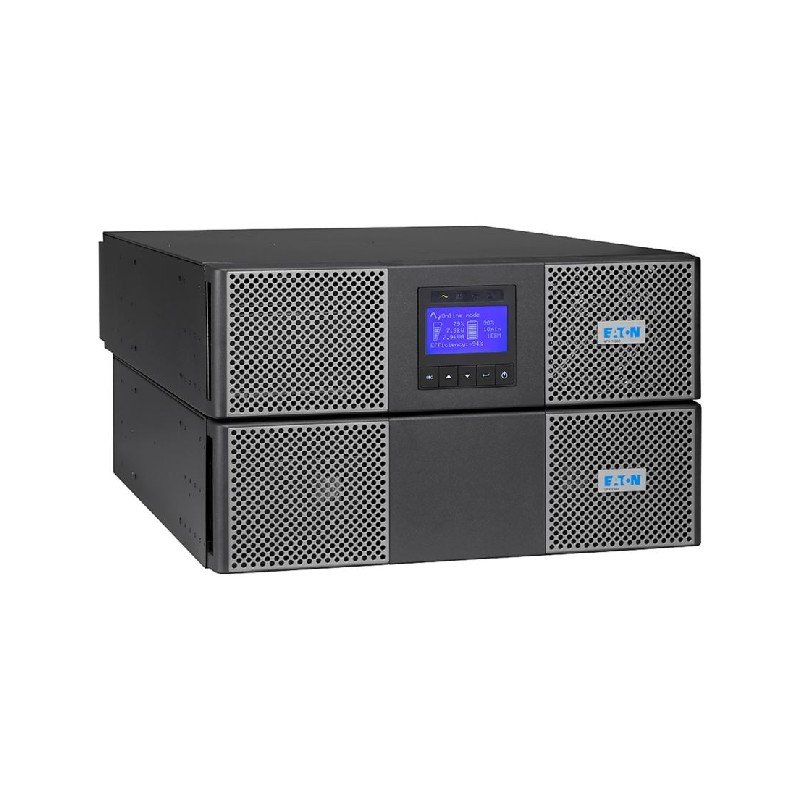

Eaton Smart On-Line UPS (Rack/Tower), Double Conversion, 11KVA IGBT with Micro-controller - Single Phase IN/ Single Phase Out, Comes with Railing Kit and Hot Swap Kit 9PX 11000I

GENERAL SPECIFICATIONS

• PRODUCT NAME: Eaton 9PX UPS
• CATALOG NUMBER: 9PX11KIBP
• MODEL CODE: Eaton 9PX 11000i HotSwap
• UPC: 743172040251
• PRODUCT LENGTH/DEPTH: 70 cm
• PRODUCT HEIGHT: 44 cm
• PRODUCT WIDTH: 26 cm
• PRODUCT WEIGHT: 86 kg
• COMPLIANCES: CE Marked, TUV
• CERTIFICATIONS: IEC/EN 62040-1, IEC/EN 62040-2, CE, EAC

BATTERY

BATTERY MANAGEMENT

• ABM & Temperature compensated charging method (user selectable)
• Automatic battery test
• Deep discharge protection
• Automatic recognition of external battery units
• BATTERY REPLACEMENT: Hot-swappable battery modules
• BATTERY QUANTITY: 20
• BATTERY RATING: 12 V / 9 Ah
• BATTERY TYPE: Sealed, lead-acid
• EXTENDED BATTERY CAPABILITY: Yes

ELECTRICAL OUTPUT

• RECEPTACLE: (4) C19, Hardwired
• TOPOLOGY: Online/Double-conversion
• WATTAGE: 10 kW
• VA RATING: 11 kVA
• OUTPUT WAVEFORM: Sine wave
• VOLTAGE: 230V
• OUTPUT POWER FACTOR: 0.9
• OUTPUT NOMINAL VOLTAGE: 230V default (200/208/220/230/240/250V)
• OUTPUT VOLTAGE RANGE: 200/208/220/230/240/250 V +/- 1%
• VOLTAGE DISTORTION OUTPUT (LINEAR LOAD) - MAX: 2
• OUTPUT FREQUENCY: 50/60 Hz
• FEED TYPE: 1

ELECTRICAL INPUT

• INPUT CONNECTION: Hardwired/fixed connection
• INPUT NOMINAL VOLTAGE: 230V default (200/208/220/230/240/250V)
• INPUT VOLTAGE RANGE: 176-276 V (100-276 V with derating)
• NOMINAL FREQUENCY: 50/60 Hz
• INPUT FREQUENCY RANGE: 40-70 Hz
• INPUT POWER FACTOR: >.99

COMMUNICATIONS

COMMUNICATION

• USB port (HID compliant)
• Serial port (RS232)
• Mini terminal block for remote On/Off
• Mini-terminal block for remote power off
• Dry contacts (4 outputs, relay, DB9)
• DB15 for parallel operation
• EXPANSION SLOTS: One slot for an optional communication card
• ETHERNET INTERFACE: No
• INCLUDES NETWORK CARD: No
• SOFTWARE COMPATIBILITY: Eaton Intelligent Power Manager, Eaton Intelligent Power Protector
• USER INTERFACE: Multilingual graphical LCD display
• TYPE OF INTERFACE: Other
• POTENTIAL FREE SWITCH CONTACT: Yes

ENVIRONMENTAL

• ALTITUDE: 3000 m
• BTU RATING: Online: 2047
• NOISE LEVEL: <50 dB at 1 meter
• RELATIVE HUMIDITY: 0-95% non-condensing
• TEMPERATURE RANGE: 0° to 40°C (32° to 104°F)

ADDITIONAL SPECIFICATIONS

SPECIAL FEATURES

• Double conversion topology
• Constantly monitors power conditions and regulates voltage and frequency
• Provides more real power (watts) to protect more equipment with a 0.9 power factor
• Energy Star provides the highest efficiency level to reduce energy and cooling costs
• The internal bypass allows service continuity in case of a UPS fault
• Next-generation graphical LCD display
• Compatible with Virtual environments (VMware, Hyper-V, Citrix Xen, Redhat)
• Meter energy consumption (at the UPS level)
• Parallel operation using HotSync technology
• Hot-swappable batteries
• Advanced Battery Management (ABM) technology to increase battery lifetime
• FORM FACTOR: Rack/tower
• RACK SIZE: 6U
• CONSTRUCTION TYPE: Free-standing model
• RACK MOUNTING KIT: No
• EFFICIENCY: 95

PACKAGE CONTENTS

• Power Module
• Extended battery module (EBM)
• Maintenance Bypass
• USB cable
• Serial cable
• Battery cable with comms for automatic battery cabinet recognition
• (2) Supports for tower mounting
• Link plate
• Safety instructions
• Quickstart guide
• PHASE (INPUT): 1
• PHASE (OUTPUT): 1
• INTERNAL BYPASS: Yes
• HOT SWAP POWER: Yes
• AUTO SHUTDOWN FUNCTION: Yes
