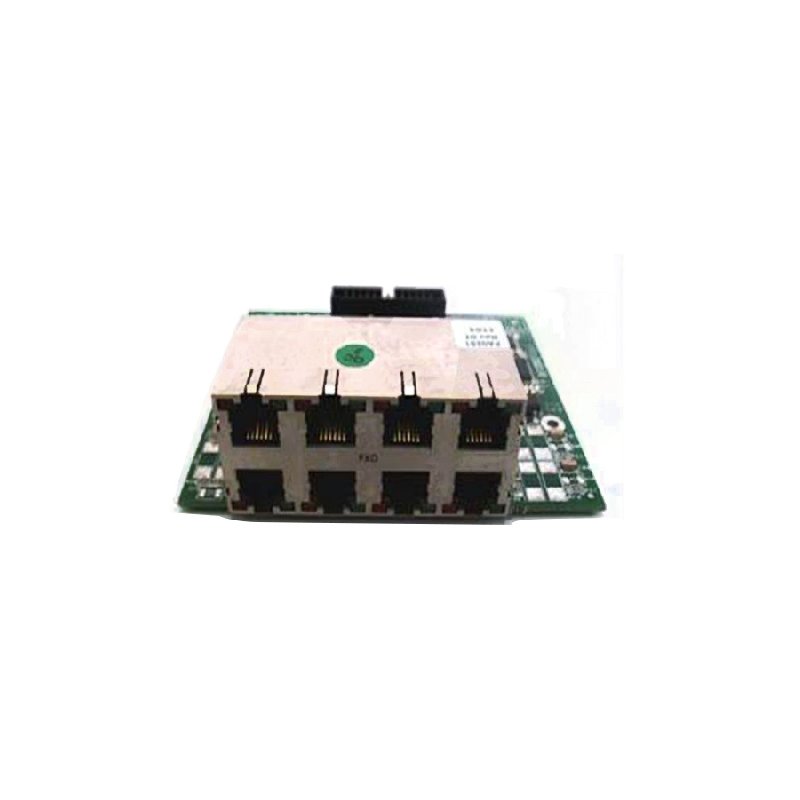

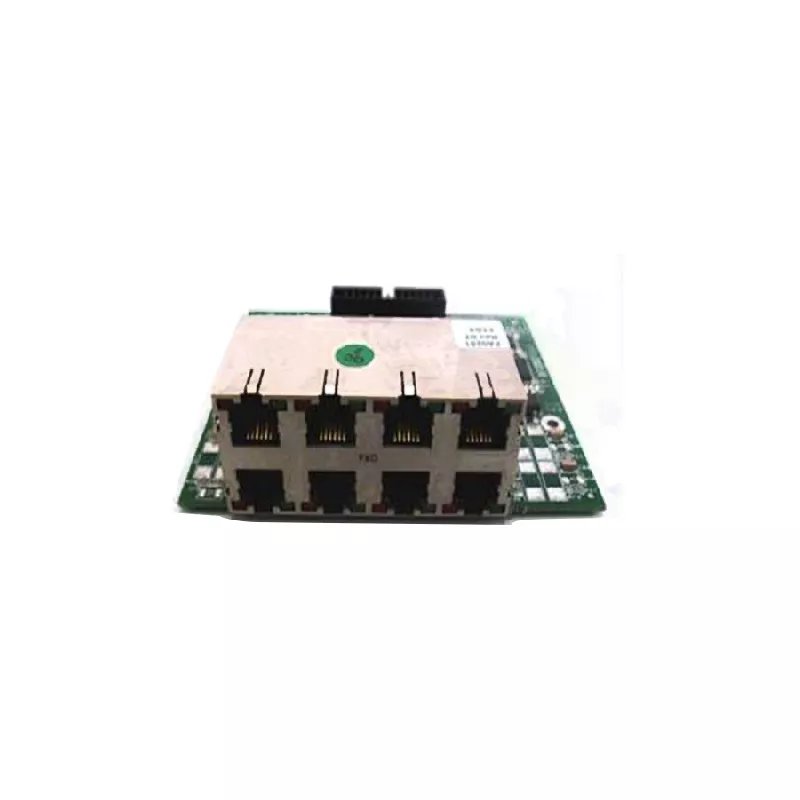

D-Link 8 Port FXO Module for DVX-8000 (Including One Time License Activation fees) DVX-8020

This private exchange 8-port FXO module supports the D-link SPI (Serial Peripheral Interface) internal DVX-8010 bus and is designed to operate with PSTN POTS lines. It supports 100% electronic operation (no relays) based on solid-state DAAs (Data Access Arrangements). The module is electrically isolated, with a capacitive coupled line circuit. Built-in surge protection tested per FCC part 68. Voltages and currents (supplied by the E-main control module): Logic 3.3 VDC @ up to 0.2 Amp.

The module includes eight RJ11 ports for line connection. Each port has two LEDs (Light Emitting Diodes).

The green LED indicates port status:

•  Solid Green = off-hook, engaged line
•  Blinking green = ringing

The red LEDs are used for special indications (on, synchronized, active) when the module is installed in the first (left-most) position in a D-link PBX chassis.

Specifications:

Environmental Operation Information

• Temperature: 0-40 degrees Centigrade
• Humidity: up to 95%, non-condensing

Physical Dimensions

• 90×105 Millimeters

Certifications

• FCC 47CFR part 15 subpart B
• TBR21
• RoHS
• EC
