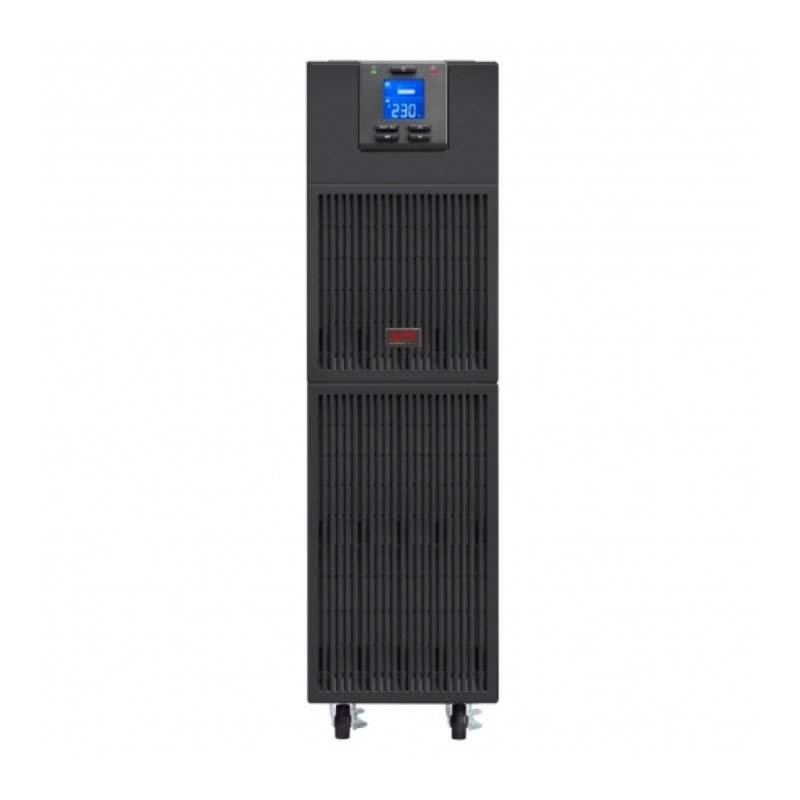

APC Easy UPS On-Line 10000VA, 230V, Hard Wire 3-Wire(1P+N+E) Outlet, Energy Efficient, Intelligent Card Slot, LCD

Key Features:

• High quality, Double-conversion On-line UPS designed for essential power protection needs even in the most unstable power conditions.
• Automatic internal bypass Pure static bypass switch without bridging contactor securing a fast and reliable transfer to and from bypass, rated for 125% nominal load.
• Automatic restart of loads after UPS shutdown Automatically starts up the connected equipment upon the return of utility power.
• ECO Mode Operating mode that by-passes unused electrical components in good power conditions to achieve high operating efficiency without sacrificing protection
• EPO Attach the device to an Emergency Power Off (EPO) system so that power can be turned off in an emergency situation.
• Input power factor correction Minimizes installation costs by enabling the use of smaller generators and cabling.
• Intelligent battery management Maximizes battery performance, life, and reliability through intelligent, precision charging.
• LCD graphics display Text and mimic diagrams that display modes of operation, system parameters and alarms.
• Serial connectivity Provides management of the UPS via a serial port.
• USB connectivity Provides management of the UPS via a USB port (not available on all models).

Manageability

• SmartSlot Customize UPS capabilities with management cards.
• LCD graphics display Text and mimic diagrams that display modes of operation, system parameters and alarms.
• Network manageable Provides remote power management of the UPS over the network.
• Serial connectivity Provides management of the UPS via a serial port.
• LED Indicators Provide easy-to-read status of the unit and utility power conditions.

Availability

• Intelligent battery management Maximizes battery performance, life, and reliability through intelligent, precision charging.

Serviceability

• Disconnected battery notification Warns when a battery is not available to provide backup power.
• Predictive failure notification Provides early-warning fault analysis ensuring proactive component replacement.
• Automatic self-test Periodic battery self-test ensures early detection of a battery that needs to be replaced.
• Audible alarms Provide notification of changing utility power and UPS power conditions

Features

• Allows the user to manage the UPS functions, schedule automatic shutdown, and monitor the power grid occurrences through an interactive interface that ensures easy and intuitive monitoring. Management Software
• Safety-agency approved Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment.
• Pure sine wave output on the battery Simulates utility power to provide the highest degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics.
• USB connection Use your PC to access additional power protection and management features for your UPS via a USB Port.

Specifications:

Output

• Max Configurable Power (Watts): 10.0kWatts / 10.0kVA
• Output Voltage Note: Configurable for 220: 230 or 240 nominal output voltage
• Efficiency at Full Load: 94.0 %
• Output Voltage Distortion: 1 %
• Output Frequency (sync to mains): 50/60 Hz +/- 3 Hz Sync to mains
• Other Output Voltages: 220 V, 240 V
• Load Crest Factor: 3: 1
• Topology: Double conversion online
• Waveform type: Sine wave
• Bypass: Internal bypass (automatic and manual)

Input

• Input frequency: 40 - 70 Hz Auto-sensing
• Input voltage range for main operations: 110 - 300 60 % load, 176 - 300 Full loads
• Efficiency at Full Load: 94.0 %
• Other Input Voltages: 220 V, 240 V

Batteries & Runtime

• Battery type: Lead-acid battery
• Typical recharge time: 5 hours)
• Nominal Battery Voltage: 192 V
• Expected Battery Life (years): 3 - 5
• Battery Charge Power (Watts): 235 Watts

Communications & Management

• Interface Port(s): DB-9 RS-232, Intelligent Smart Slot, USB
• Control panel: Multifunction LCD status and control console
• Emergency Power Off (EPO): Yes
• Available SmartSlot™ Interface Quantity: 1

Surge Protection and Filtering

• Surge energy rating: 600Joules

Physical

• Maximum Height: 685MM, 68.5CM
• Maximum Width: 190MM, 19.0CM
• Maximum Depth: 447MM, 44.7CM
• Net Weight: 65.0KG
• Shipping weight: 77.0KG
• Shipping Height: 910MM, 91.0CM
• Shipping Width: 320MM, 32.0CM
• Shipping Depth: 580MM, 58.0CM
• Color: Black

Environmental

• Operating Temperature: 0 - 40 °C
• Operating Relative Humidity: 0 - 95 (Non-condensing) %
• Operating Elevation: 0 - 3000meters
• Storage Temperature: -15 - 60 °C
• Storage Relative Humidity: 0 - 95 (Non-condensing) %
• Storage Elevation: 0 - 15000meters
• Audible noise at 1 meter from the surface of unit: 8.0dBA
• Online thermal dissipation: 2128.0BTU/hr
• Protection Class: IP20

Conformance

• Approvals: CE, EAC, TISI, UKCA
